    Hydraulic Hammer Kit Diagrams

RMH Installation Instructions are second to none in this business! Our staff pioneered the use of CAD (Computer Aided Design) generated drawings in the early "80's" with the use of 3-dimensional artwork. This expertise has appeared in various Construction Equipment and CAD magazines for this type of work in the construction CAD industry.

We continue to improve and stay a step ahead of our competition on the quality and clarity of our Installation Instructions.

Step 1: Click on the diagrams below to see enlarged versions.

Step 2: Maximize the diagram's new window size.

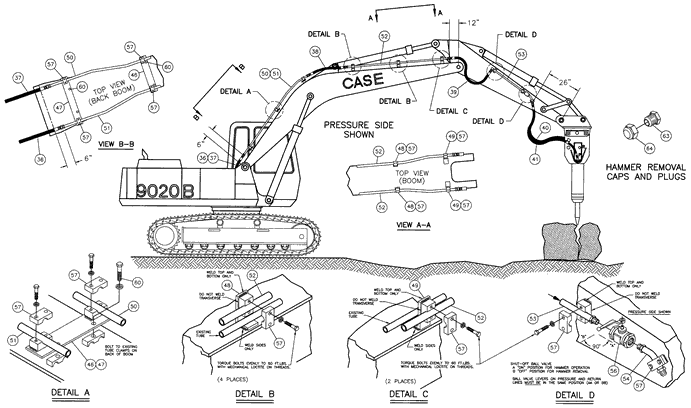

Hydraulic Kit diagram

Note: these are example diagrams -- Not working models

Hydraulic Kit diagram
